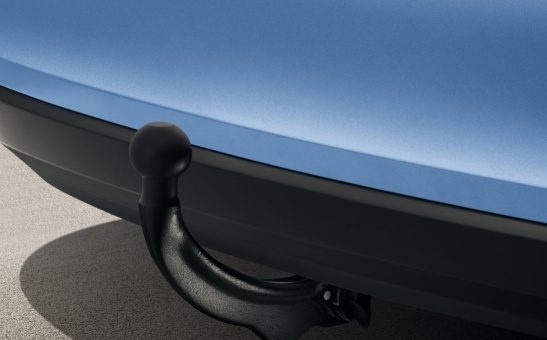

Tow bar Rapid
Detachable tow bar specifically designed for Rapid.
The tow bar is another of the helpful extras from the Škoda Genuine Accessories range that increase the utility of the vehicle. Manufactured from high-quality materials, it has undergone rigorous testi… Read more
The tow bar is another of the helpful extras from the Škoda Genuine Accessories range that increase the utility of the vehicle. Manufactured from high-quality materials, it has undergone rigorous testing for strength and resistance to corrosion, as well as load tests.
The tow bar is lockable, thereby deterring any thieves. Thanks to the simple, automatic mechanism for fitting and removing the ball hitch, no tools are needed – meaning that it is much simpler to meet the legal requirements for removing the ball hitch when the trailer is uncoupled.
When you are driving abroad, the country-specific legal regulations must be followed at all times if you have not attached a trailer to the tow bar fitted to your car. Retrofitting a tow bar to your vehicle increases the demand on its cooling system.
For installation, the following parts from Škoda Genuine Accessories need to be ordered:
Wiring harness set for cars with tow bar preparation:
- until CW 22/2015 use 5JA 055 204 (contains control unit 1K0 907 383F)
- from CW 22/2015 use 5JH 055 202B (contains control unit 5H0 907 383C)
Wiring harness set for cars without tow bar preparation:
- until CW 22/2015 use 5JA 055 204 + 5JA 055 204A
- from CW 22/2015 use 5JH 055 202B + 5JA 055 204B or 5JC 055 316 (only RHD)
Frame for the bumper aperture: 5JH 807 518
8 329
Kč
1
Added to Your Shopping Cart
In stock
Free pickup from tomorrow 23. 12. at our
(if ordered by 03:00 PM today and card payment.)
Delivery only to Škoda E-shop partners
Technical specifications
- Product code
- 5JH092155
- Compatibility
- This part is not compatible with the electronics of vehicles produced in Russia (Kaluga, Nizhny Novgorod).
- Material
-
Quality steel
Plastic - Content of set
- Holder for the tow bar, ball hitch with key for the knob lock, fastening bolts, protective cap for the towball, cover cap for the mounting recess, fitting instructions.
- Professional installation recommended
- Yes
- Usage
- Maximum trailing load: Braked – up to 1200 kg; unbraked – up to 630 kg; the trailing load limits as specified in the registration document shall apply. Maximum vertical load: 75 kg.
- Warning
- Due to the complex nature of the work required, as well as the subsequent activation of the tow bar (the five-digit task code can be found in the spare parts catalogue ETKA), fitting must be carried out by an authorised Škoda Auto service partner.
- Restrictions
- Not for model Škoda Rapid Spaceback. Not for model Monte Carlo and not with the diffuzer 5JH071729.
- Weight
- 17,5 kg
Designed for:
Rapid (2012-2020)
