Complete tow bar set KAROQ
Foldable tow bar specifically designed for KAROQ.
The tow bar is manufactured from high-quality materials and has undergone load tests as well as rigorous testing for strength and resistance to corrosion complies with homologation E1 55R-012696 and al… Read more
The tow bar is manufactured from high-quality materials and has undergone load tests as well as rigorous testing for strength and resistance to corrosion complies with homologation E1 55R-012696 and all Czech and international regulations.
Features an automatic mechanism that swivels the ball hitch in and out, please refer to the Owner‘s Manual for detailed instructions.
Depending on the equipment fitted to the vehicle, the cooling system components will need to be replaced in accordance with the information either held by workshop technicians in authorised ŠKODA AUTO specialist service centres.
For fitting must be ordered from the ŠKODA Genuine catalogue:
- for vehicles with standard rear seats:
- Switch x 1 / 3G0 959 511A WHS
- Switch cover x 1 / 5G0 868 345 81U
- Support x 1 / 575 868 784
- Adhesive x 1 / D 001 210 M2
- for vehicles with Varioflex rear seats:
- Switch x 1 / 565 959 511 WHS
- Switch cover x 1 / 565 868 345 9B9
- Support x 1 / 57A 868 784
- Adhesive x 1 / D 001 210 M2
- for vehicles not set up for a tow bar, additionally:
- Wiring harness / 57A 971 658
- for vehicles not set up for a tow bar and with a heated steering wheel, additionally:
- Wiring harness / 57A 971 658G
Added to Your Shopping Cart
Sold out
Delivery only to Škoda E-shop partners
Technical specifications
- Product code
- 57A092160L
- Material
- Quality steel
- Dimensions
- 1150 x 540 x 190 mm
- Content of set
- Complete tow bar set, bolts, control unit, expanding nuts, fitting instructions.
- Warning
- This tow bar set is dedicated for the basic ŠKODA KAROQ model, with either left- or righthand drive, with and without tow bar preparation, manufactured until the end of CW 24/2022. All the same is correct for ŠKODA KAROQ made in the Russian production line, but with time restriction until the end of CW 17/2022.
- Restritions
- Cannot be retrofitted to KAROQ FL vehicles without tow bar preparation. Not available for vehicles manufactured from CW 31/2018 to CW 48/2018 with 1.0 TSi engines (MQ-F 85 kW and DQ-F 85 kW), nor for vehicles manufactured from CW 31/2018 to CW 36/2018 with 1.6 TDi engines (MQ-F 85 kW).
- Notice
- See the registration document for the maximum trailing load (braked/unbraked) and maximum bearing load.
- Weight
- 32 kg

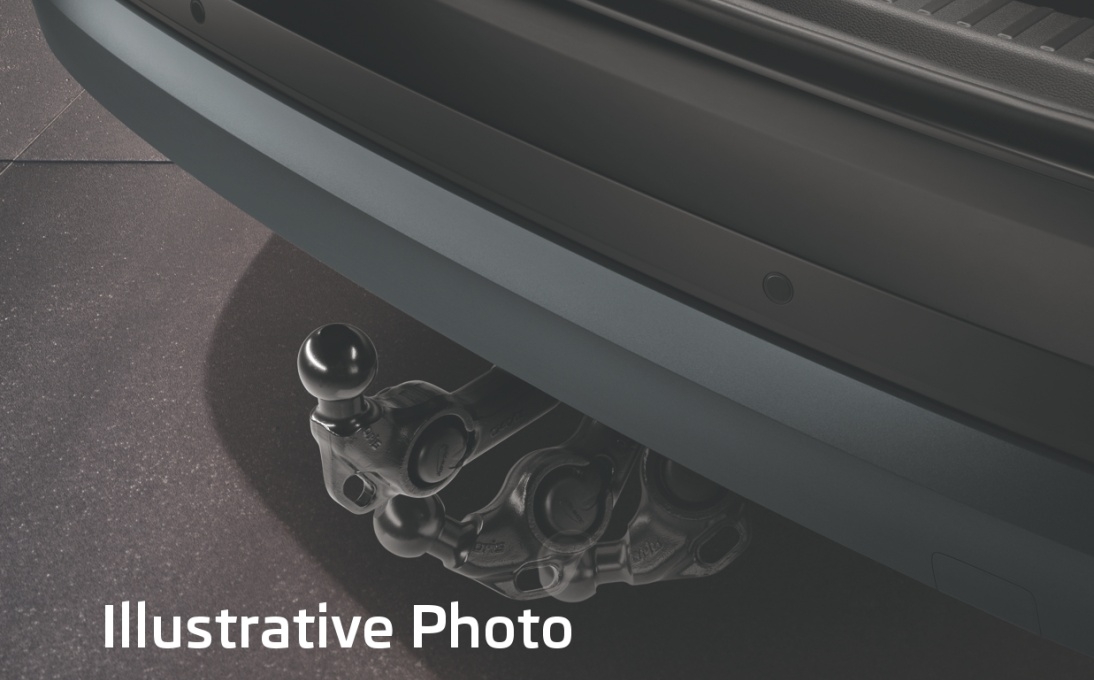

- The photo is illustrative only
- Yes
Designed for:
Karoq (2017+)
